Datacenter TECH racks
New Datacenter TECH racks for high density server and datacenter installations. Fully accessorized, front glass door and blind rear panel or front and rear grilled doors, 2-section blind side panels, no. 4 19’’ numbered uprights, brush strip cable entry on the base of the rack, removable trapdoors for cable inlet on the roof and the base, max loading weight till 2000 kg.
General characteristics
- Steel sheet structure
- Color: Grey RAL 7035 or Black RAL 9005
- Configurations with front glass door and side and rear blind panels or front grilled door and rear grilled double door with side blind panels
- Swing handle with key and 3- point locking system
- Door opening 180°
- 2-section blind side panels removable with locking key for the 42U and 47U versions; single section panels for the 27U version
- Ventilation slits for exhaust air and holes for the installation under the roof of ventilation units
- Brush strip cable entry on the base of rack
- Roof and floor base panels with removable trapdoors for cable inlet
- No. 4 19’’ uprights with unit number and adjustable in depth
- IP20 protection degree according to EN 60529
- Earthing kit
- No. 4 levelling feet
- Loading weight: 2000 Kg
- Compliant with standard IEC 60297, EN 61587-1, EN 60917
Main features

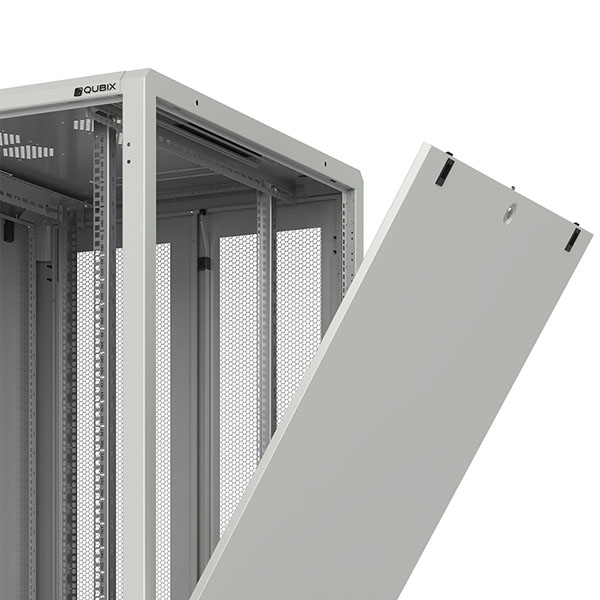

2-section blind side and rear panels
2-section blind side and rear panels completely removable and lockable with safety key. The panels allow an easy installation and inspection procedures.

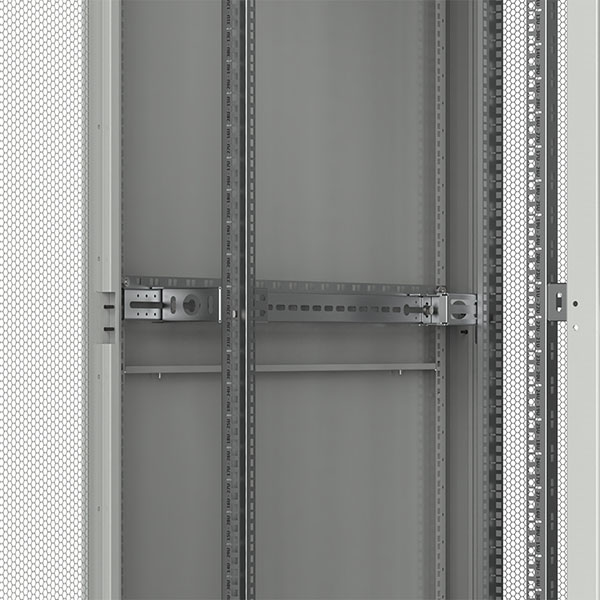

Vertical numbered uprights adj. in depth
Racks are equipped with 1 pair of numbered uprights adjustable in depth to ease the installation procedures.

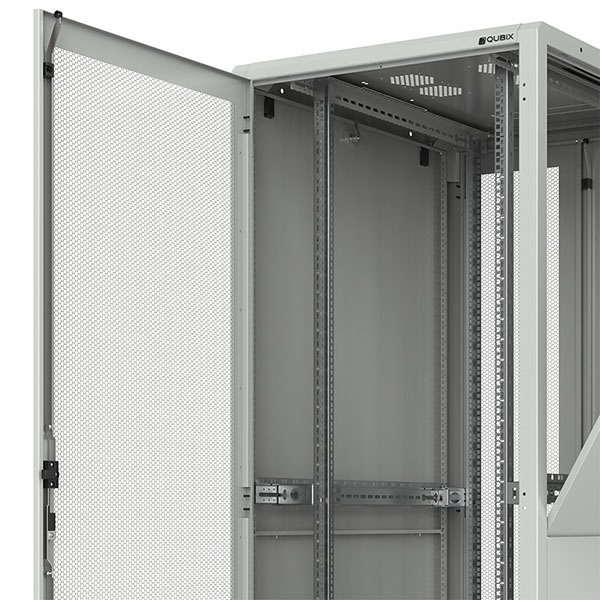

Door with safety key
The door with tempered glass protects the equipment installed in the rack, swing handle with key and 3-point locking system.

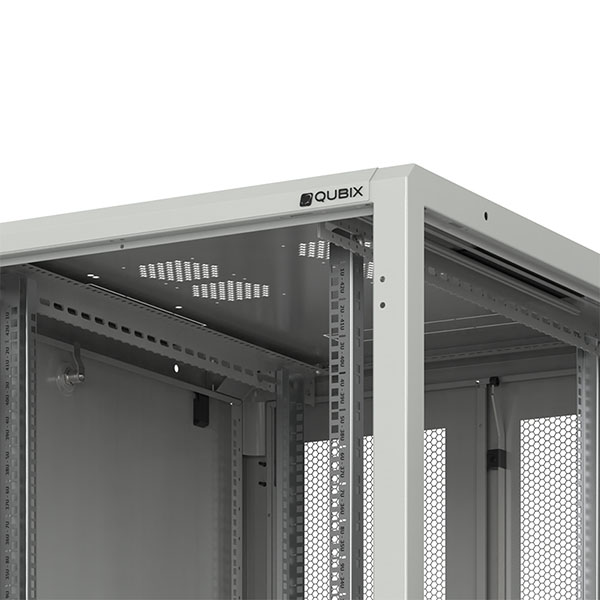

Ventilation
Ventilation units with or without thermostat can be installed on all racks, zero units space take up. It can be installed without reducing the number of available units in the rack.

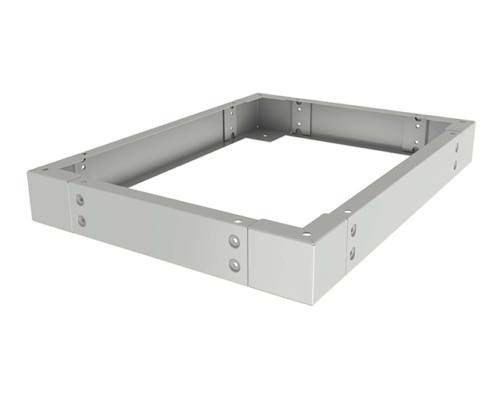

Plinths
Plinths to allow and protect cable pass through. The kit consists of no. 4 angle brackets and no. 4 removable flanges.

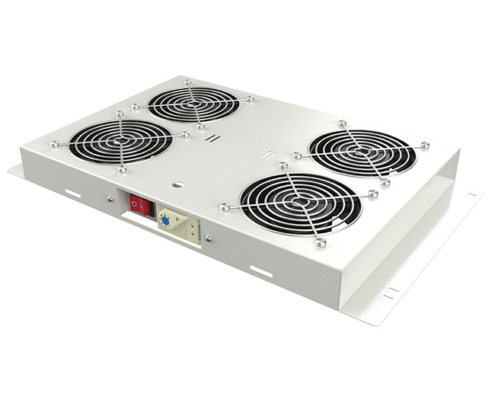

Ventilation units
Ventilation units with 2 or 4 fans, with or without thermostat, to extract air from inside the racks. Zero-unit space take up.

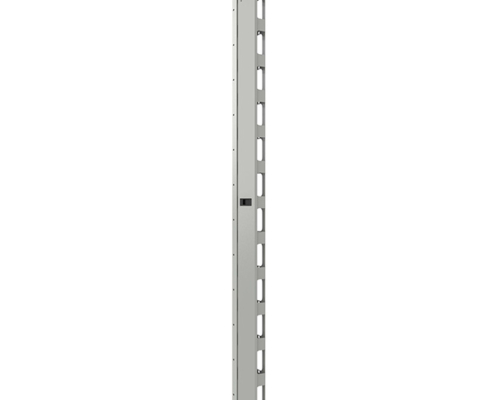

Vertical cable management panel
Vertical cable management panels with painted steel sheet structure complete with a snap-in cover, ideal for an easy and organized management of patch cords inside the rack.

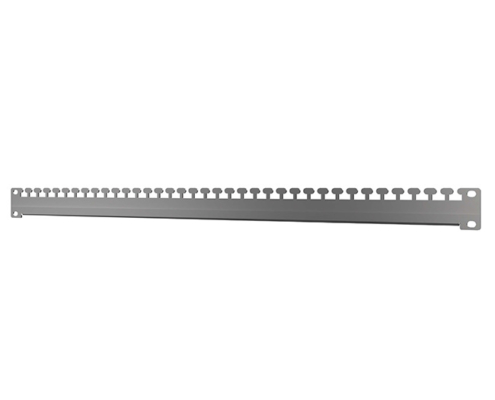

Cable holding bracket
Cable holding bracket made of steel sheet, ideal for managing cable bundles.
Reference items
Units | Height | Length | Depth | Gray RAL 7035 |
Black RAL 9005 |
Front door | Rear door |
27U | 1350 | 600 | 1000 | 2009128 | 2009128N | Glassed | – |
800 | 1000 | 2009138 | 2009138N | Glassed | – | ||
42U | 2000 | 600 | 1000 | 2009115 | 2009115N | Glassed | – |
800 | 1000 | 2009171 | 2009171N | Glassed | – | ||
800 | 1000 | 2009163 | 2009163N | Grilled | Grilled double door | ||
800 | 1200 | 2009159 | 2009159N | Glassed | – | ||
800 | 1200 | 2009164 | 2009164N | Grilled | Grilled double door | ||
47U | 2240 | 600 | 1000 | 2009143 | 2009143N | Glassed | – |
800 | 1000 | 2009134 | 2009134N | Glassed | – |
