Proprietary to CCS, the Easy Crimp Compact 6 and 6A sockets are designed to enable quick and easy termination without the use of tools, thus providing immediate benefits in terms of installation time and cost.

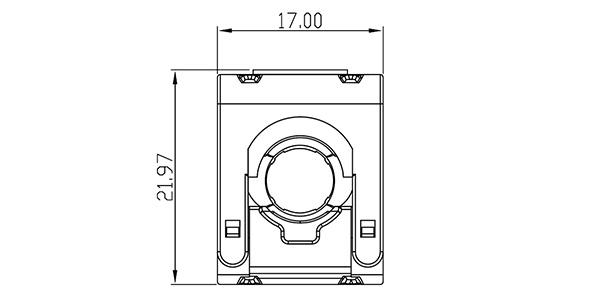

COMPACT AND TOOLLESS
Easy Crimp Compact sockets are 100% toolless and due to their small size are suitable for high-density installation solutions.
READY FOR POE++
Easy Crimp Compact sockets certified to IEC 60512-99-002:2019, fully meet the operational requirements of all PoE standards and in particular to the PoE++ 802.3bt standard, maintaining high performance and proper operation even after hundreds of insertion cycles.
CERTIFIED AND GUARANTEED
The performance of Easy Crimp Compact sockets is certified by independent laboratories (Force Technology). CCS® accredited installers can apply for a performance warranty of up to 30 years’ duration on installed CCS® systems.
100% TOOLLESS CONNECTOR SEQUENCE IN 4 STEPS
STEP 1

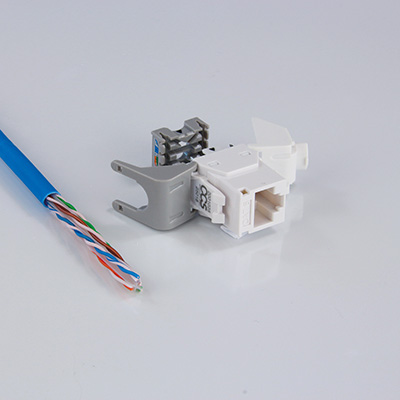

Remove the outer sheath of the cable for about 4 cm using the crimp tool; cut and remove the cross separator.
STEP 2

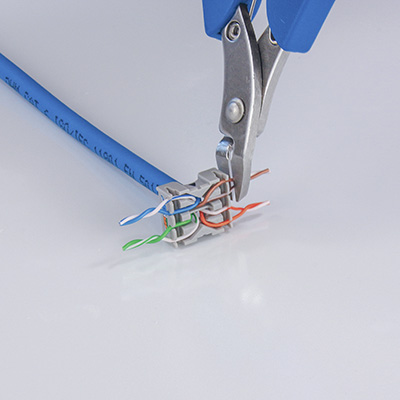

Insert the pairs into the termination cover, arrange the conductors in the appropriate insertion cavities following the color coding T568A/B, and cut off the excess with a flat-blade cutter.
STEP 3

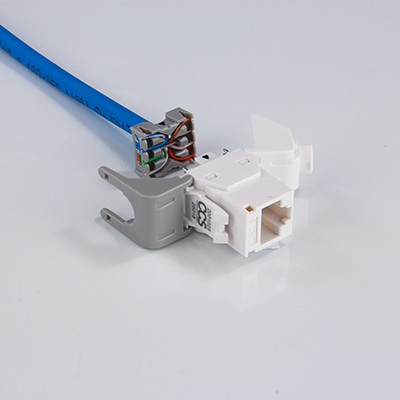

Attach the termination cover to the socket by matching the respective insertion arrows; the side hooks will hold the cover in the correct position for crimping.
STEP 4

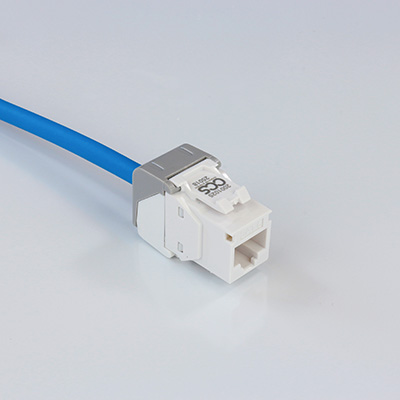

Tighten the termination lugs by hand or through the use of pliers until they are completely closed; apply the clamp provided.
EASY CRIMP COMPACT SOCKET CONNECTOR TUTORIAL
In these two video tutorials, we illustrate step-by-step how easy, fast, and intuitive it is to make a CCS Easy Crimp Compat socket connection.
CONNECTING A UTP PLUG
CONNECTING AN STP PLUG
DISCOVER THE ENTIRE EASY CRIMP COMPACT RANGE

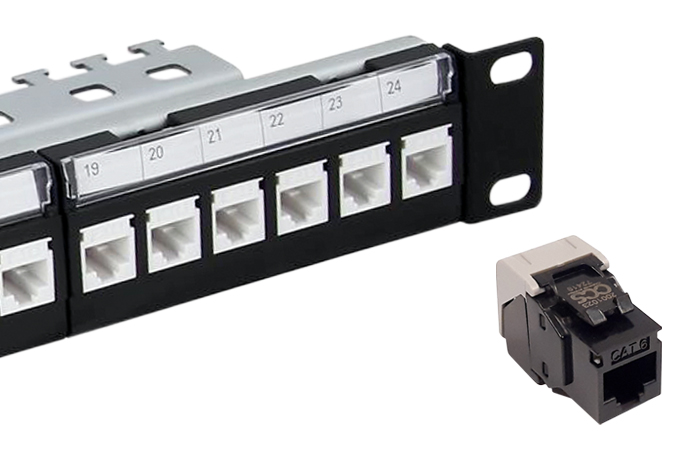

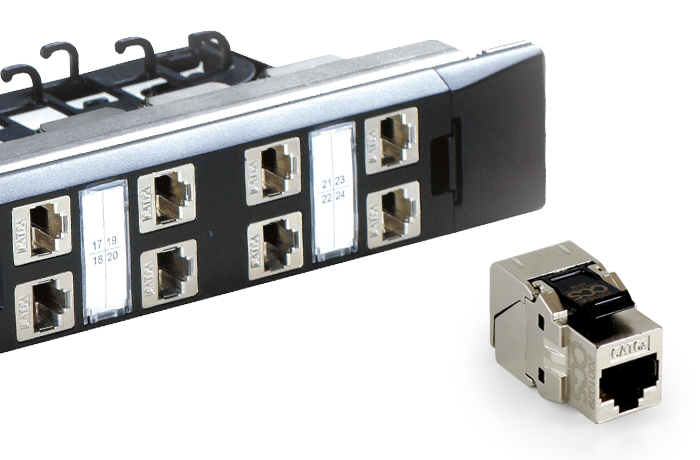

The Easy Crimp Compact Category 6 and 6A wiring system includes compactly sized patch panels and receptacles, ideal for use in high-density installations. With the Easy Crimp Compact quick termination system, termination execution is done quickly and quickly, without the use of crimping or impact tools.
CATEGORY 6A
CATEGORY 6

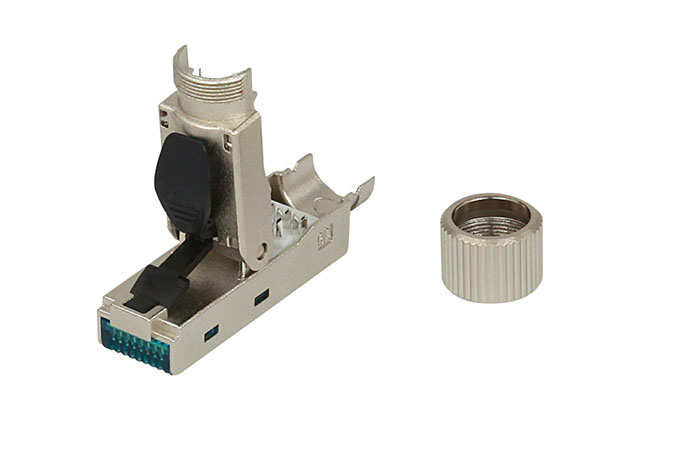

PLUG UTP/STP

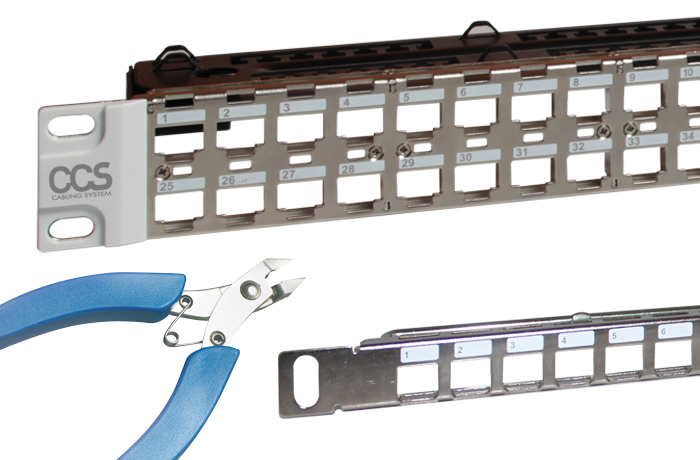

ACCESSORIES
