Wall TECH racks
Wall TECH racks range with new solutions. Designed to grant ease of use and installation, wall TECH racks are now available with versions from 6 to 22 units, depth from 350 to 600 mm.
Equipped with bottom and roof ventilation grills, glass door with screen printed logo and safety key, no. 2 or 4 uprights depending on the version, removable side panels. They can be supplied assembled in Grey RAL 7035 or flat pack in black RAL 9005.
General characteristics
- Steel sheet structure
- Color: Grey RAL 7035 for the assembled version; Black RAL 9005 for the flat-pack version
- Tempered safety glass door with 180° opening and safety key
- Removable blind side panels
- No. 4 vertical uprights adjustable in depth to install 19″ standard equipment for the assembled version; no. 2 frontal 19” uprights for the flat-pack version
- No.2 L-shaped brackets for the equipment mount (only for the assembled version)
- Top and bottom cables inlet
- Ventilation slots allow air vent
- Suitable for the installation of forced ventilation units under the roof
- IP20 degree of protection according to EN 60529
- Static load 60 kg
Main features

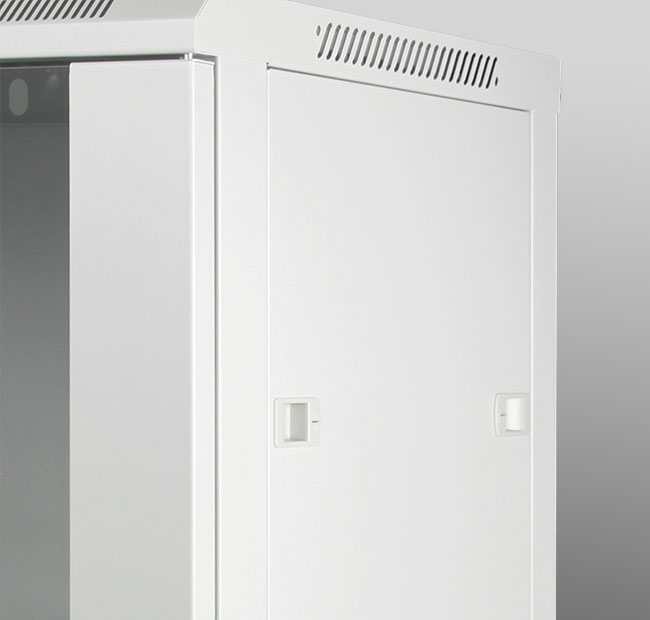

Removable side panels
Possibility to remove the side panels during the installation makes the cabling process easier as well as the verification and maintenance operations.

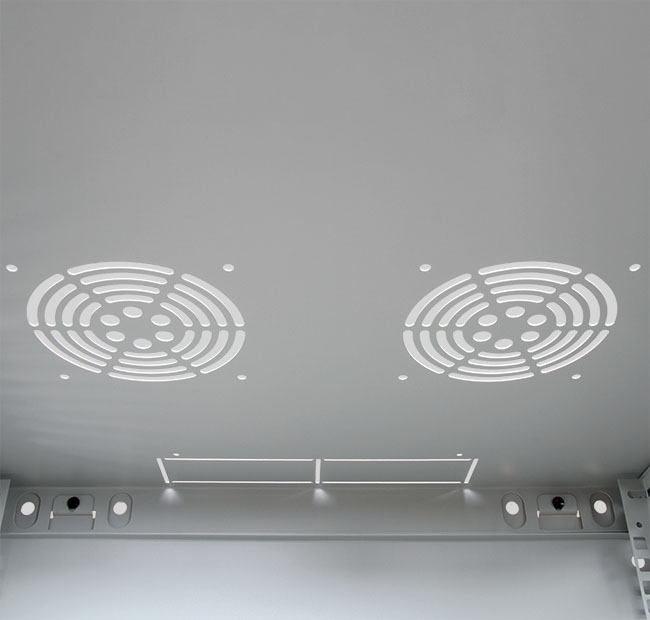

Equipped for one fan ventilation
Wall TECH racks have ventilation slots on the top. 1-fan ventilation unit or 2 single fans can be installed under the roof.

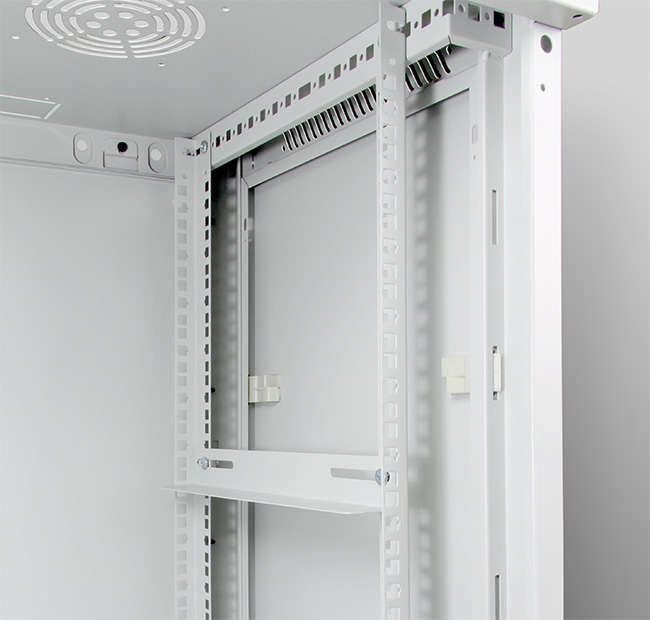

Four adjustable vertical uprights
No. 4 vertical uprights 19’’ adjustable in depth and no. 2 vertical uprights for the flat pack version.

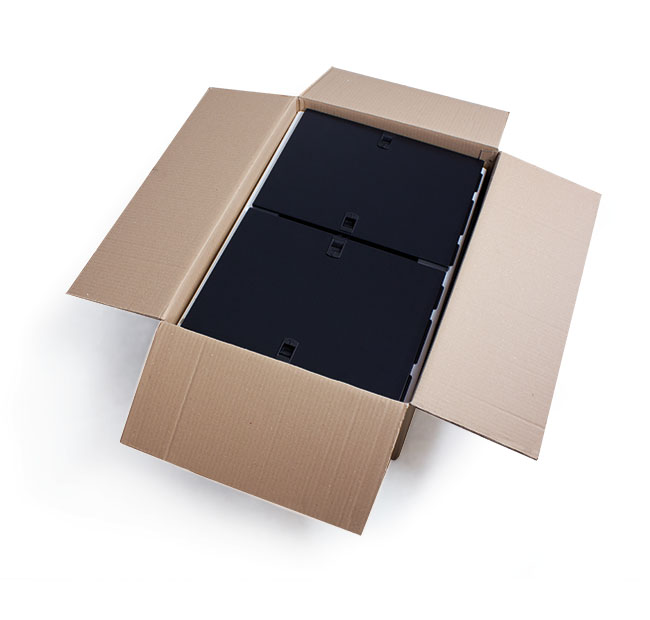

Flat pack version
Wall TECH racks are available also in black RAL 9005 in flat pack version.
Reference items
Units | Height | Length | Depth | Standard Gray RAL 7035 |
Flat Pack Black RAL 9005 |
|
Standard | Flat Pack | |||||
6U | 370 | 600 | – | 350 | 2020021 | N.D. |
370 | 600 | 570 | 450 | 2020031 | 2020031NF | |
9U | 500 | 600 | 570 | 450 | 2020032 | 2020032NF |
500 | 600 | 570 | 600 | 2020042 | 2020042NF | |
12U | 635 | 600 | 570 | 450 | 2020034 | 2020034NF |
635 | 600 | 570 | 600 | 2020044 | 2020044NF | |
15U | 770 | 600 | 570 | 450 | 2020035 | 2020035NF |
770 | 600 | 570 | 600 | 2020045 | 2020045NF | |
22U | 1080 | 600 | 570 | 600 | 2020046 | 2020046NF |
